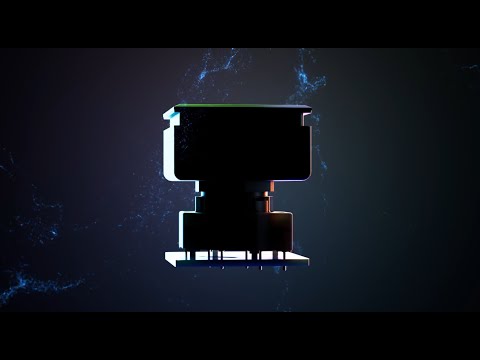

The Flexitast pushbutton is a first of its kind pushbutton and will be presented at the SPS in Nuremberg. This pushbutton is an innovative pushbutton with integrated display that was designed for dynamic control and signaling requirements. This solution combines an actual pushbutton with a 72 x 72 pixel display enabling a flexible depiction of symbols and texts that can be updated in real time.
The centerpiece of the Flexitast is a purpose-made 72 x 72 pixels ZBD display. Exclusively produced for SCHLEGEL, the display offers the best resolution and keeps the display data visible even without power supply. The dimensions of the display are 26.5 x 26.5 mm to ensure that the symbol/text can be seen from afar.
The RGB illumination makes it possible to adapt the display output to various statuses or design requirements. That way, if needed, symbols and texts can be highlighted by background colour which is ideal for complex control systems when differing states have to be visually noticeable.
Due to its robust design and the protecting glass panel, the Flexitast is durable and reliable even in demanding conditions. Burn-in of the display as known in other technologies cannot occur.
Flexitast can be used as a single button, but its full potential shows when used as a system, for which up to 128 Flexitast buttons can be combined. This enables high scalability for complex control requirements and is especially useful for bigger control systems.
The Flexitast is also suitable for rough working conditions, thanks to its robust design. It has a degree of protection of IP65 and a lifetime of 1 million switching cycles. The operating temperature ranges from -10 °C to +50 °C. The operating travel of the Flexitast is 3 mm and the contact block is tactile, with 2 NO contacts. It is operated with an operating voltage of 24 V.
